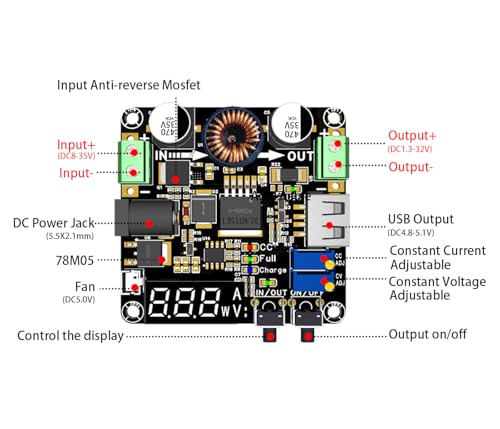

DC-DC Buck Converter Step Down Voltage Regulator Adjustable DC12V/24V/30V DC8V-35V to DC1.3V-32V 5V 12V 24V 5A Power Supply Volt Reducer Transformer Module Board
Tax included. no-cost distribution worldwide.

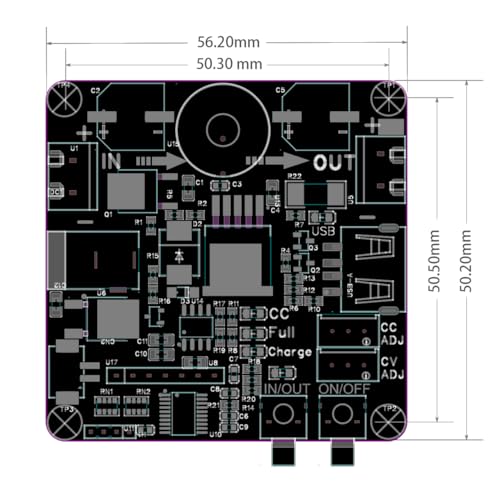

Brand: VFANPower Source: Battery PoweredMounting Type: Chassis MountCurrent Rating: 5 AmpsItem Weight: 60 Grams【Applications】High Precision Electronic Device Power Supply(±0.03V), Battery Charger (requiring diode installation), LED lights driver, Robot and Drone Power Supply, used in cars, boats, and other vehicles to power various devices such as audio systems, navigation devices, used in laboratory and educational environments for teaching and research purposes, such as circuit experiments, electronic device testing, etc.【Primary parameters】 Conversion Efficiency: up to 93%，Input voltage: DC 8-35V, Output voltage: DC1.5-32V adjustable; Output current: 5A (Max.) adjustable, Output power: 80W (Max.), Install heat sinks and fans if the power exceeds 30W. Size: 2.2X2.2 inch.【Features】Constant current (CC), Constant Voltage (CV) mode, Software Voltage calibration, USB output; Short-circuit protection, Over-temperature protection, Input reverse connection protection, ON/OFF display and output.【Display】0.28“ three-digit LED display with larger dimensions for clearer visibility. Press the IN/OUT key, the input voltage, output voltage, current, and power can be displayed separately. Press the ON/OFF key to control display or not. The corresponding indicator LED will turn on or off.Easy Installation: The compact size and simple screw terminal connections make it straightforward to integrate into new designs or retrofit into existing projects and installations. Perfect for everyday use. top-grade materials and excellent craftsmanship ensure long-lasting durability.
